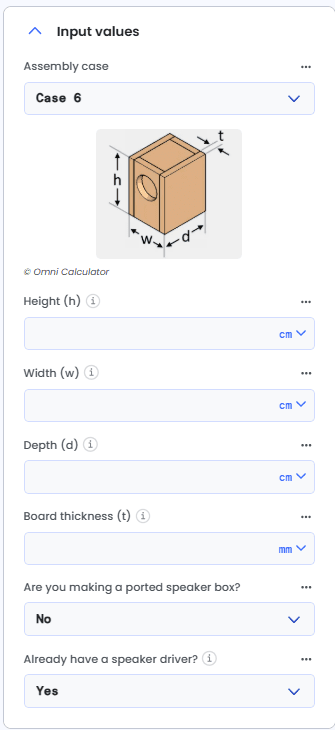

A speaker box calculator is an online tool or software designed to help you determine the optimal dimensions (width, height, depth) and internal volume (air space) for a custom speaker or subwoofer enclosure. It considers factors like the thickness of the building material, the volume displaced by the speaker driver itself, and for ported boxes, the dimensions of the port (vent) to achieve a specific tuning frequency. The goal is to create an enclosure that allows your speaker to perform at its best.

• To calculate the internal volume (Net Volume) of a speaker box manually:
  • Determine Internal Dimensions: Subtract twice the material thickness from each external dimension.
    • Internal Width = External Width – (2 × Material Thickness)
    • Internal Height = External Height – (2 × Material Thickness)
    • Internal Depth = External Depth – (2 × Material Thickness)
  • Calculate Gross Internal Volume: Multiply the internal dimensions:
    • Gross Internal Volume = Internal Width × Internal Height × Internal Depth. (If dimensions are in inches, this result is in cubic inches).
  • Subtract Speaker Driver Displacement: Find the volume your speaker displaces (from manufacturer specs or estimation) and subtract it from the Gross Internal Volume.
  • Subtract Port Displacement (for ported boxes): Calculate the volume the port itself occupies inside the box and subtract it. For a round port: Volume = π×(radius)2×length.
  • Result is Net Internal Volume. To convert cubic inches to cubic feet, divide by 1728.
  • Our box calculator automates all these steps for you!

 Yes, absolutely! The subwoofer box size calculator is a critical tool because the internal air space profoundly affects a subwoofer’s performance:

• • Too Small: Bass output will be restricted, sound thin, lack low-end extension, and potentially damage the woofer due to poor heat dissipation and over-excursion against excessive air pressure.
  • Too Large: Bass can sound boomy, loose, uncontrolled, and lack definition or “punch.” The woofer may also lose damping and exceed its excursion limits more easily.
  • Just Right (Optimal Volume): Allows the subwoofer to produce its intended frequency response, providing balanced, deep, and impactful bass. The optimal volume is usually specified by the subwoofer manufacturer.

• There’s no single “ideal” air space that applies to all subwoofers of a certain size. The optimal volume depends heavily on the individual subwoofer’s Thiele/Small (T/S) parameters (like Vas​, Qts​, Fs​). Always consult the manufacturer’s recommendations for your specific model. As a very general guideline:
  • 10-inch sub: Often 0.5 – 1.25 cubic feet.
  • 12-inch sub: Often 1.0 – 2.5 cubic feet.
  • 15-inch sub: Often 2.0 – 5.0+ cubic feet.
  • Our subwoofer box volume calculator helps you build precisely to these recommended specifications.

• Our tool functions as a cubic feet calculator sub box by default. When you input your dimensions (usually in inches or centimeters), the calculator will compute the internal volume and typically present it in cubic feet (or liters), as this is the standard unit for subwoofer enclosure specifications in many regions. If your inputs are in inches, the internal volume in cubic inches is divided by 1728 to get cubic feet.

• Sealed Boxes (Acoustic Suspension): Are airtight. They offer very tight, accurate, and well-defined bass with good transient response. They are generally smaller and easier to design and build correctly. They tend to be less efficient, requiring more amplifier power for the same SPL.
• Ported Boxes (Bass Reflex/Vented): Have a vent (port) that reinforces low bass output, making them more efficient and capable of louder, deeper bass than a sealed box of similar size with the same woofer. They require careful design of the box volume and port tuning.
• “Better” is subjective: For pure sound quality and accuracy, many prefer sealed. For higher output and deeper extension (common in car audio for SPL or bass-heavy music), ported is often favored. Our calculator handles both sealed box calculator needs and complex ported designs.
•

• For maximum bass output (Sound Pressure Level or SPL), a properly designed and tuned ported enclosure is generally the way to go. Key factors include:
  • Sufficient Box Volume: Allowing the woofer to operate efficiently.
  • Correct Port Tuning: The port’s area and length must be calculated to tune the box to a frequency that complements the subwoofer’s characteristics and desired bass peak. Our subwoofer box tuning calculator features are essential here.
  • Woofer Capability: The woofer itself must be designed for high excursion and power handling.
  • Amplifier Power: Sufficient clean power is needed to drive the woofer effectively.
•

• Speaker driver displacement is the amount of physical space (volume) that the speaker itself (including its magnet, basket, and the part of the cone that intrudes into the box) takes up when mounted inside the enclosure. This volume is no longer available as “air space” for the speaker to work with, so it must be subtracted from the box’s gross internal volume to calculate the true net air space

• MDF (Medium Density Fiberboard) is widely considered the best all-around material due to its high density, excellent acoustic damping (it’s not very resonant), consistency, and ease of machining. Aim for at least 3/4″ (19mm) thickness. Baltic Birch Plywood is another premium option, known for its strength and rigidity, though it’s typically more expensive. Avoid materials like standard particleboard, which can vibrate excessively and degrade sound quality.
•
